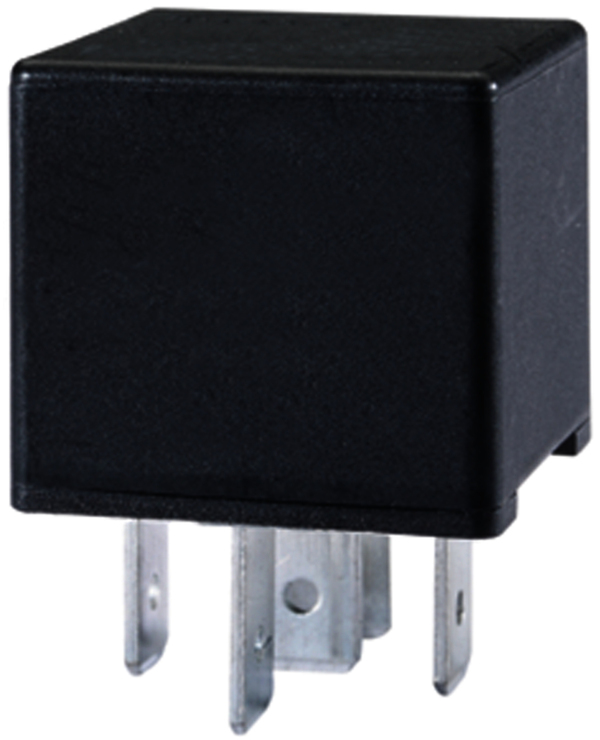

Hella 40amp Relay

Hella 40 amp Relay
Hella 40 amp Relay
Item# HE-933332151
Regular price: $24.95
Sale price: $14.96
Availability: Usually ships the same business day

Product Description

Hella Relay, main current - 12V - 5-pin connector - Normally Open Contact Article number: 933332151 (66183). Description:
Temperature range from: -40°C - Temperature range to: 125°C
Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A

Mini relay - make contact relay 12 V, 5-pole, with double output, without holder
Rated switching current: min. 30 A, max. 40 A (at 80 °C ambient temperature)
Number of switching operations: min. 100,000
